The TravelSat SP75 Mobile PayTV DELUXE Satellite Kit contains absolutely everything you will need to enjoy FOXTEL or AUSTAR whilst on the road (using your own decoder).
BEWARE - There are cheaper similar kits to this on the market but they do not contain the same accessories included in this kit. Make sure you compare apples with apples. If you are on a tighter budget consider our TravelSat SP75 Mobile PayTV LITE Satellite Kit.
A PROVEN PERFOMER

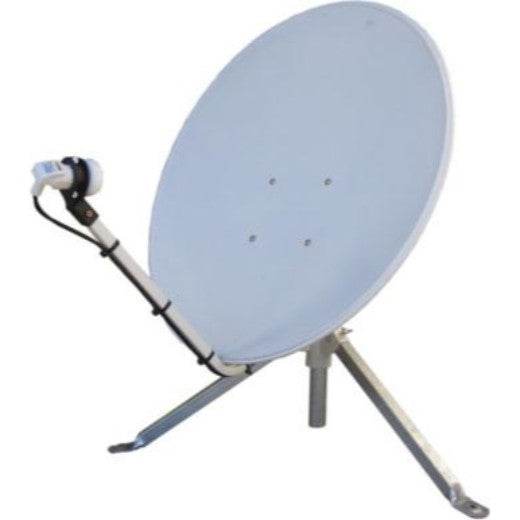

The TravelSat SP75 dish has been a stock item for over 8 years and over that time, thousands have been sold. They've been used all over Australia from Burnie to Bamaga and beyond. The SP75 measures 75cm across and 83cm top to bottom. It features a rolled edge for extra strength and is zinc coated then painted.
The rear bracket is the best design with a single wingnut to loosen to adjust the elevation of the dish. We've always favoured this design as opposed to other brands like Azure Shine or Triax with their over complicated mechanism and difficult to read elevation scale. There's even a plastic retaining clip to hold the U bolts together and stop the dish from sliding down the mast while you're sorting out the alignment.
For quick set up and pack up, the front LNB arm can be easily removed by loosening the knob on the rear of the dish.
Apadded dish bag isincluded for this dish and protects all of the components. It has internal pockets for the small components, padding all round and enough room to store the cables too.
A sturdy tripod is included which has adjustable legs for uneven ground, bubble level and peg holes in the feet. This weighs about 4.5KG and packs down to 600mm.
Setup and ready to go, the TravelSat SP75 dish with tripod will look like this.
WHAT IS INCLUDED?
TWIN OUTPUT LNB
The included LNB (amplifier on the front of the dish) is compatible with Austar and Foxtel and has a twin cable wired from the dish. This is suitable for all standard pay TV boxes, MyStar and Foxtel IQ.
SATELLITE METER - TravelSat 4200HD Handheld Meter
You'll need to align your satellite dish to the satellite and to do this we include the best consumer level satellite meter in the market. This meter will save you hours of headaches and may even save your marriage! This is TravelSat's answer to the ClearSat 3240.
The TravelSat 4200 Handheld Meter is ultimate satellite TV VAST Foxtel caravan traveller’s meter. The TravelSat 4200HD will have your dish lined up in minutes not hours.
Programmed specifically for the VAST & PayTV networks, the ClearSat 3240 Pro Handheld Meter will lock on quick and is very responsive.
Powered by a built in, long life lithium battery, there's no need to be dragging your coaxial cable around while looking for the best position for your dish. Robust build quality with rubberized handle makes holding the meter in your hand much easier than some of the larger more cumbersome meters.
Expected battery life while in use is around 4 hours so given it'll only take you a couple of minutes to align the dish, charges will be few and far between. On the subject of charging, the TravelSat 4200HD comes standard with an AC charger.
- a short twin cable for the dish to connect to the meter
- twin 10m cable from the dish to the caravan wall
- twin internal 1m cable from the inside wall to the decoder.
A basic compass can be supplied with our system - choose from the options. You don't need to be a scout’s captain to align a dish. The compass is used as a reference to North. When you read through our instruction manual, you'll notice that the direction charts relate to North.
You'll need a way to connect that external coaxial cable in through your van wall. We supply our EziPlate weatherproof wall fitting that is easy and neat to install. The EziPlate can adjust to wall thicknesses up to 35mm and is a direct, no loss connection from outside to in. You may already have something similar but unless it is a direct connection from outside to in with no joins or splitter in between then it will not work.
SUMMARY OF INCLUSIONS:
- TravelSat SP75 Dish & Tripod
- Dish Carry Bag
- Twin Output LNB
- TravelSat 4200HD Handheld Meter
- Twin Weatherproof Ezi-Plate
- Twin Cable Kit (2 x 1m, 1 x 10m)
